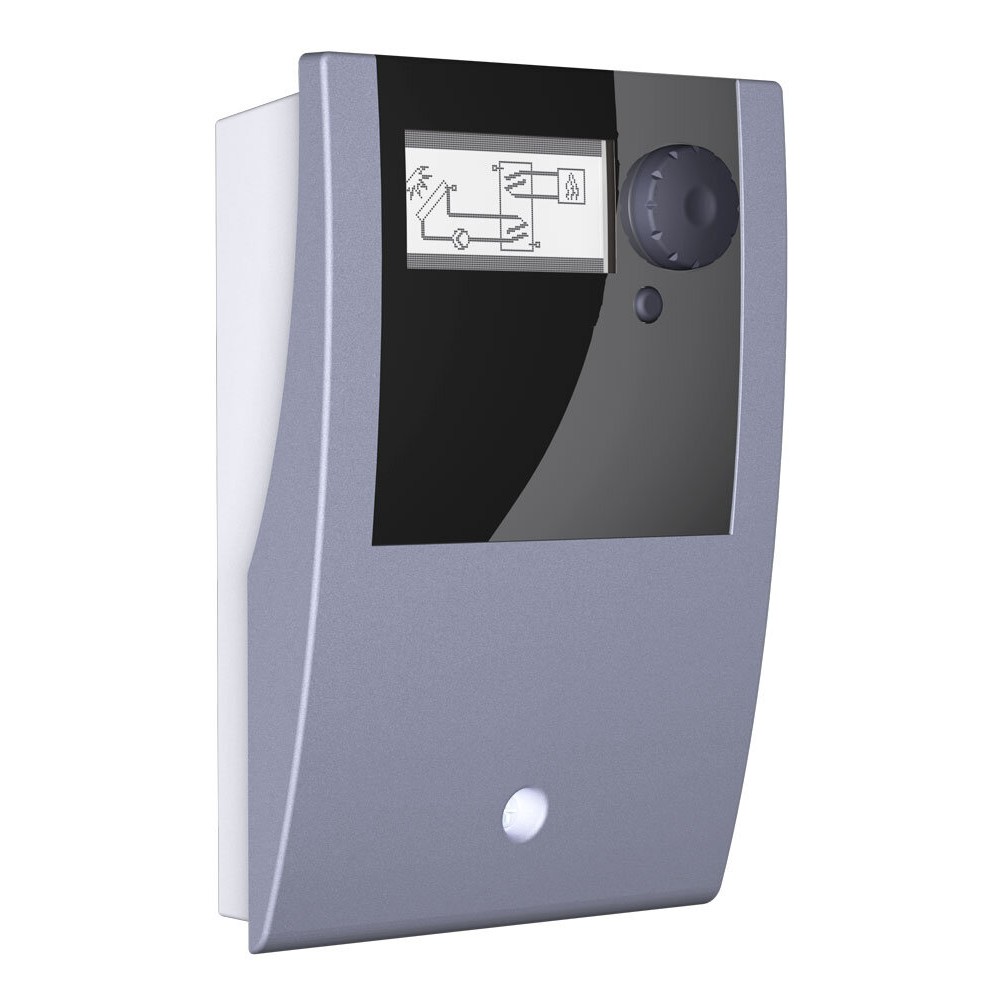

Differential temperature controller for solar thermal plants, Model smart Sol nano Basic
Differential temperature controller for solar thermal plants, Model smart Sol nano Basic
- Stock: Disponibile
- Marchio: EMZ
- SKU: 01.301.050
€ 151,11
IVA inclusa
Imponibile: € 125,93
For achieving greater efficiency of a solar system, a differential temperature controller can be installed in order to manage the system and optimize its operation. The smart Sol range of controllers have a user friendly operation, attractive and elegant design as well as extreme versatility.
User-friendly design
- Full graphic display (monochcrome) for clear and logical visualization
- Innovative and easy operation
- Smart and time-saving wiring
- Installation wizard for quick and safe commissioning
- Service wizard for quick customer support
- Numerous funcions for operation, monitoring and protection
- Elegant and puristic design
Supported hydraulic systems
Operation and visualization
- Full graphic FSTN monochrome display with backlight
- Rotary encoder with Push, ESC button
- 3 operation modes- Manufacturer (OEM), installer and end user
- User guide and self-explanatory menu
- Combination of text and symbols
- Several languages installed
Wiring
- Easily removable terminal cover
- Laser engraved connection diagram
- Wide-spaced terminals
- Variable wiring options
- Durable spring-type terminals
- Intersection-free wiring
- Strain relief device
Installation and service wizard
- Developed in cooperation with Regensburg University and heating trade representatives
- With just a few settings, the solar system is ready for operation
- Preset functions for different solar system types
- Indication of malfunctions and errors
- Diagnostics accessible by the end user in case of error messages
- Installer recommendations for fixing malfunctioins or for maintenance
Plant visualization
- Indication of measured values of inputs and outputs
- Service hour counter for outputs
- Error list
- Solar yield measurement with data display
