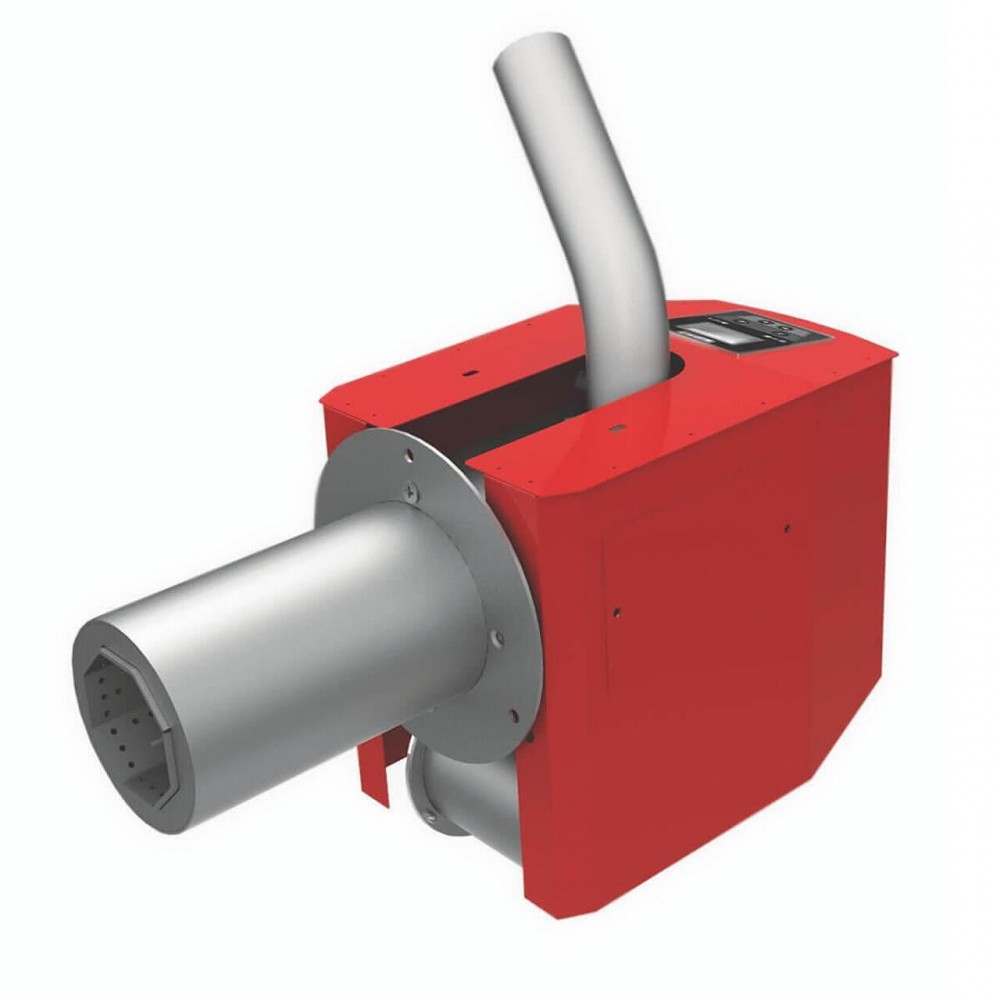

BURNiT Pell 25, 5-25kW

The BURNiT Pell is a pellet burner for heating boilers. It burns wood-pellets with diameter 6-8 mm. It ensures an efficient and low-emission combustion. Produced of high- grade stainless steel, it withstands temperatures up to 1150°С. The built-in CPU-controlled unit, automatic cleaning system and internal auger manage the burner operation for optimum efficiency. The burner has to be fitted to boiler.

Available sizes, kW: 25, 30, 40, 70, 90, 150

Product Features

• Built-in control unit:
  - fully automated ignition and pellet feed;
  - self-cleaning function, activation of 1 to 6 times every 24 hours;
  - controls the operation of  the circulation pump of the central heating / buffer tank;
  - controls the operation of the pump of the domestic hot water;
  - option for control by room thermostat;
  - timer with weekly programmer;
• Temperature sensor to monitor boiler temperature
• Temperature sensor to monitor water heater temperature
• Two temperature sensors to monitor buffer tank temperature
•  An option for chimney fan control.
• Photo sensor -  monitors the power of the burner flame
• Internal auger
• The feeder chute allows 360° rotation for its best convenient positioning when connecting the pellet auger to the hopper
• Dry contact-less resistance heater assuring ignition of fuel
• Innovative cleaning system of the combustion chamber using compressed air
• Air feed fan, step-regulated  (0% ÷100 %)

Safety devices

- Elbow-shape feeder chute prevents backfire entry from burner into pellet hopper;
- Thermostatic protection 80°С . When the surface of the feeder chute reaches 80°С, the control stops the feeding of pellets into the burner and signals for fault
- Fuse 10 А;
- In case of power interruption, all parameter settings are stored in the memory of the controller.
- Upon the subsequent restart of the burner, the controller resumes the execution of the program from the point when the power interruption occurred.

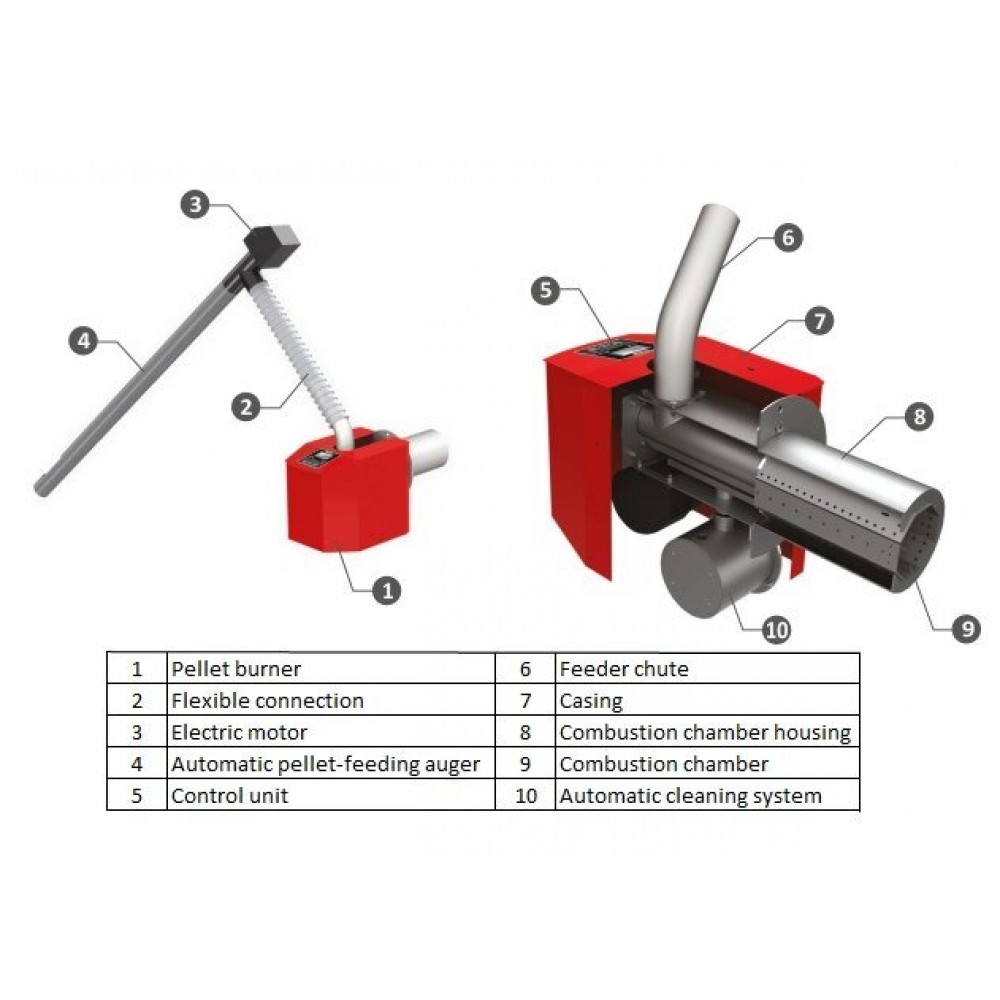

Schematic of the main features of a Pellet Burner BURNiT Pell

1. Pellet burner
2. Flexible connection
3. Electric motor
4. Automatic pellet-feeding auger
5. Control unit
6. Feeder chute
7. Casing
8. Combustion chamber housing
9. Combustion chamber
10. Automatic cleaning system
