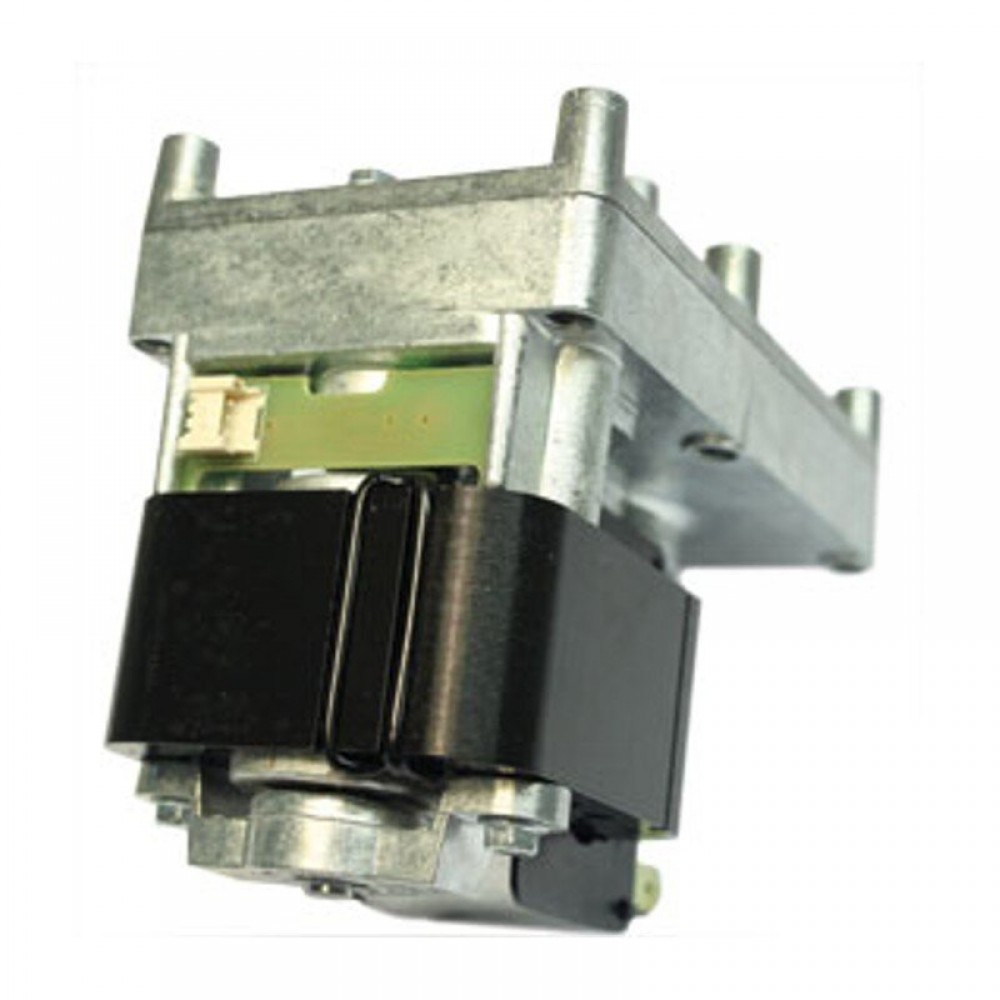

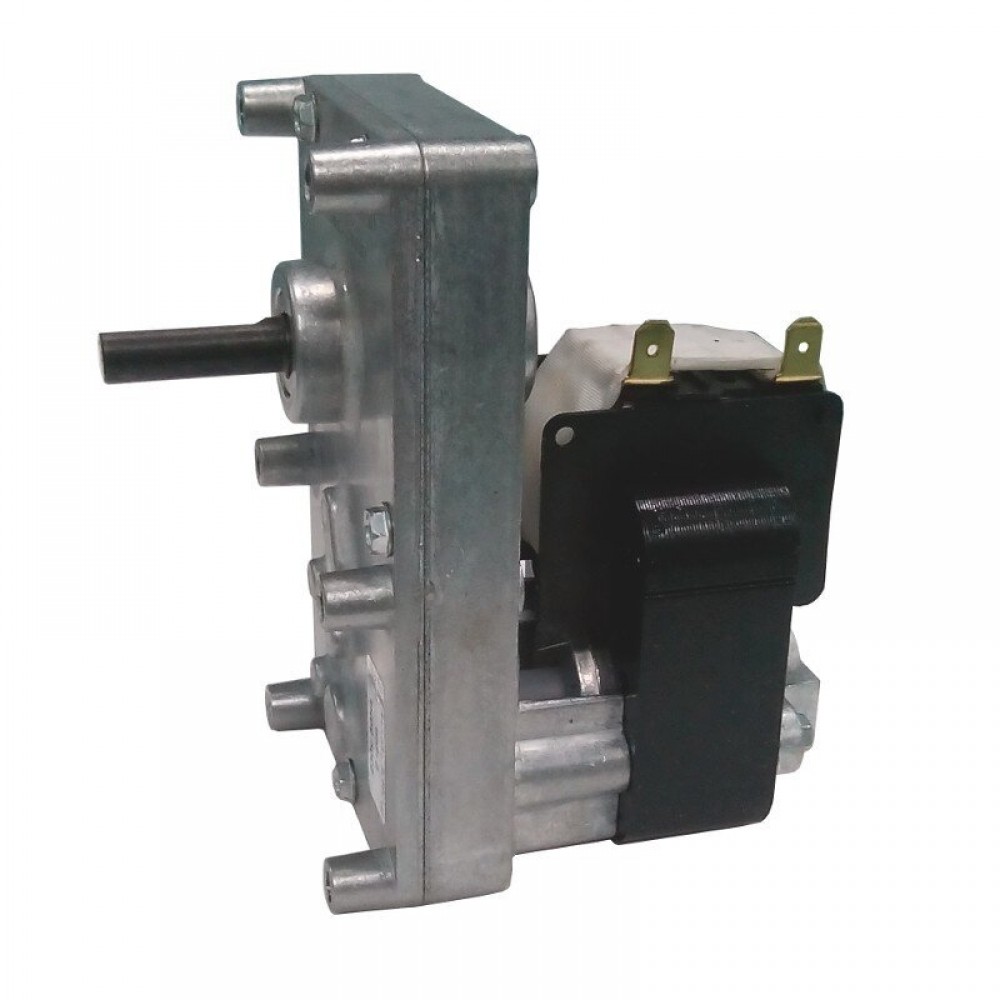

Motoriduttore / Motore coclea Mellor FB1324, 2RPM per stufa a pellet Caminetti Montegrappa, Edilkamin

Motoriduttore / Motore coclea Mellor FB1324, 2RPM per stufa a pellet Caminetti Montegrappa, Edilkamin

Motoriduttore per stufa a pellet. Compatibile con:

CAMINETTI MONTEGRAPPA - Aktiv 12, Aktiv 15, Aktiv 18, AQ12, AQ 15, AQ18.

EDILKAMIN - Blade, Jane

  • Stock: Disponibile
  • Marchio: Mellor
  • SKU: 16.455.004
€ 157,50
IVA inclusa
Imponibile: € 131,25
2 o più € 141,75
3 o più € 133,88
Consegna prevista tra
il 21.Sep.2024
DHL Schenker
Politica Di Consegna

Resi gratuiti
60 giorniVedi i dettagli

Pagamenti
    Vedi i dettagli

The heavyweight of our range, the FBT3 is a low speed, high torque unit designed with pellet fired appliances and fresh brew vending systems in mind, although it is equally suited for many other applications. High quality engineering ensures a quiet and long running life. Output shaft length and diameter to suit individual customer requirements.

FB1324 gear motor is suited to be used as rotor in pellet stoves, pellet burners, pellet boilers, agricultural equipment, composting (waterless) toilets, food and restaurant equipment - conveyor toasters, kebab machines, hot dog rollers, scientific equipment, medical equipment, packaging equipment, vending machines, fresh brew coffee systems, ice makers, peristaltic pumps, diagphragm pumps, amusement machines, point of sale displays, instrumentation & turntables.

T3 series with encoder, 23Nm output torque, 17 Watt consumption, 2rpm speed, clockwise rotation, 8.5mm shaft diameter, 25mm magnetic core, 220 V AC 50/60 Hz power supply.

Caratteristiche
Peso (kg) 1.0000
Stato di Produzione Gran Bretagna

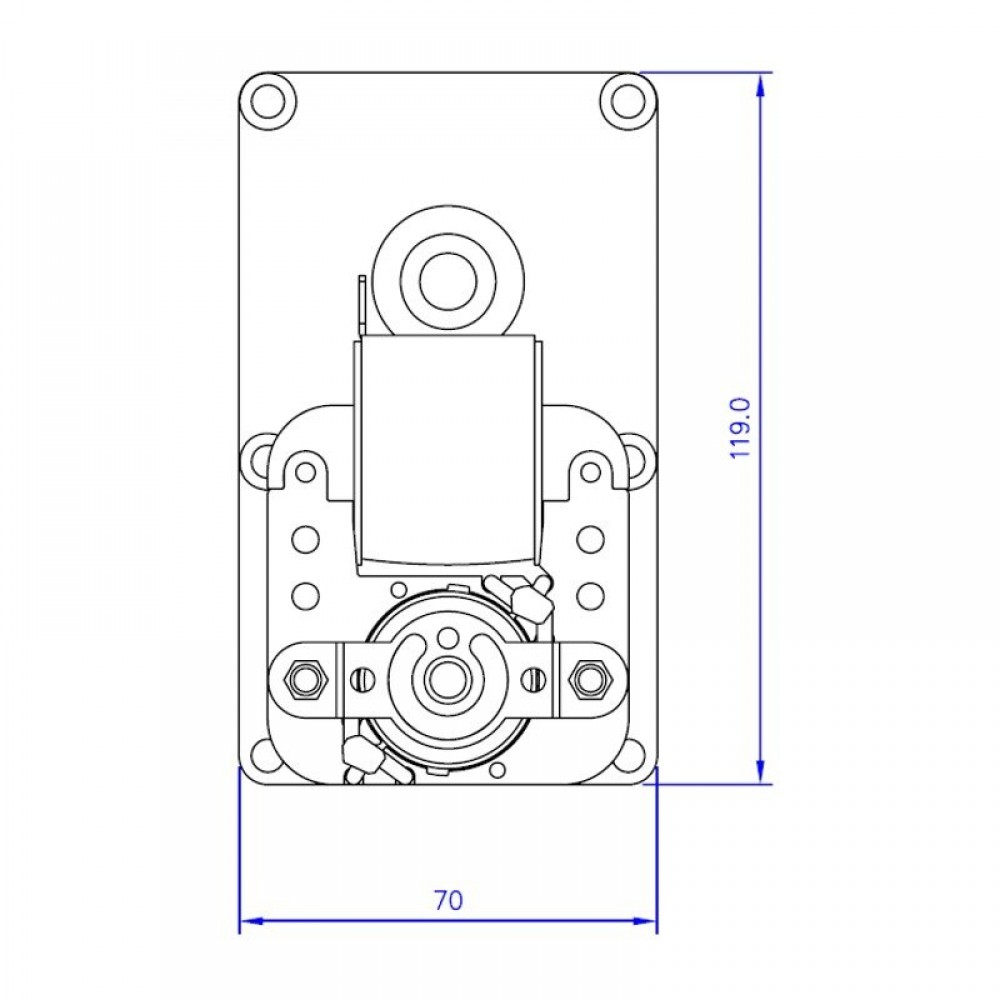

Dimensioni Larghezza (mm) 70
Dimensione Altezza (mm) 116
Garanzia 6 mesi
MPN 14702021
Alimentazione elettrica (V/Hz) 220-240/ 50-60
Consumo energetico (W) 17
Genere/Tipo Motoriduttore

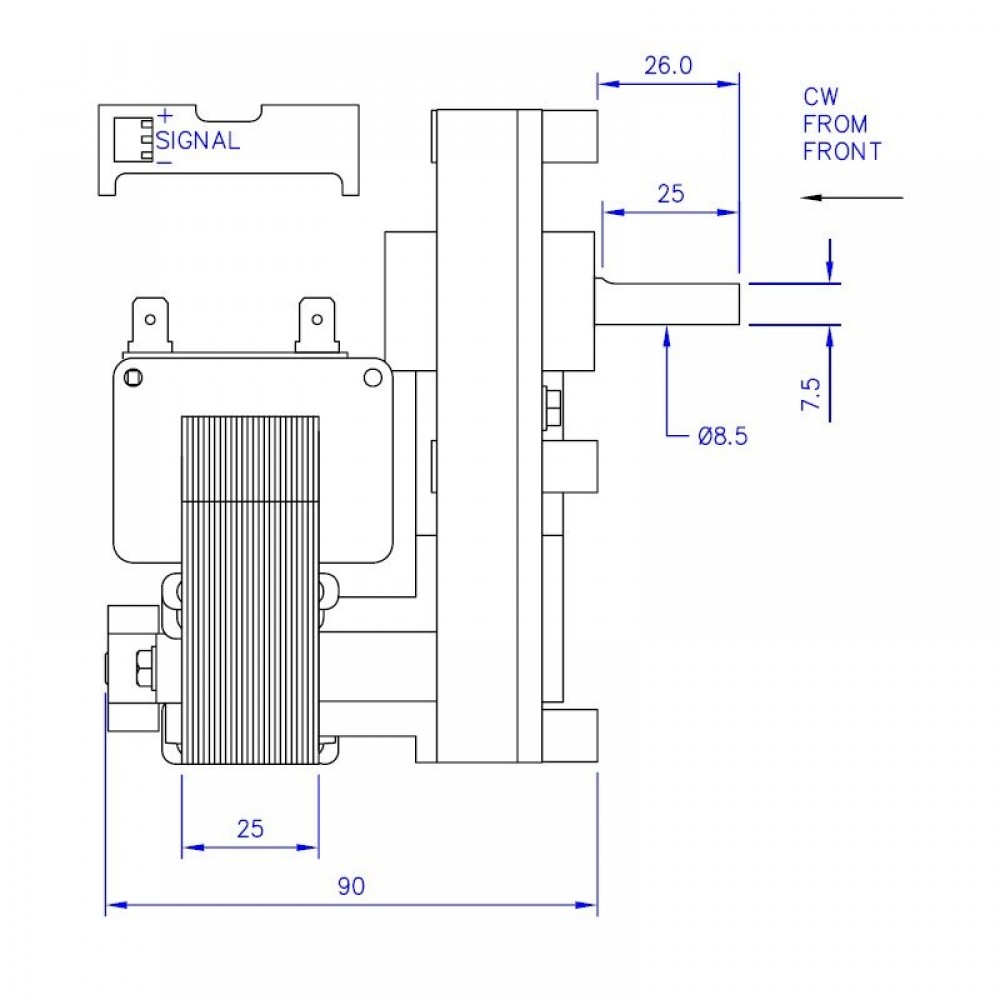

Lunghezza totale [mm] 119
Velocità di rotazione (rpm) 2
Nucleo magnetico (mm) 25
Diametro dell'albero (mm) 8.5
Fresatura di alberi Singola
Rotazione Senso orario
Coppia torcente uscita (Nm) 23
Compatibilità Caminetti Montegrappa
